Cephalometric Analysis in Contemporary Orthodontics: What the Side Profile X Ray Really Tells Us

By Dr. Manu Sharma, DMD, board certified orthodontist  |  Updated October 2026

Almost every orthodontic workup in our Newark office includes one image most patients have never had before: a lateral cephalometric X ray, usually called a ceph. It is a side view of the head taken under standardized conditions, and it lets us measure how the upper jaw, lower jaw, teeth, and soft tissue profile relate to one another.

Cephalometric analysis is the process of reading that image. We identify anatomical landmarks, connect them into reference lines, and measure the angles and distances between them. Those numbers help answer the question that drives every treatment plan: is this a tooth problem, a jaw problem, or both?

This article explains what the analysis measures, which methods I rely on, what the research says about its real strengths and limits, where AI fits in, and what all of it means for you or your child.

What Is Cephalometric Analysis?

Cephalometric radiography dates to 1931, when Holly Broadbent introduced a head holder that positions the patient the same way every time. That standardization is what makes the image measurable. Two cephs taken years apart can be compared, and measurements can be checked against reference values from large groups of people.

On each ceph, landmarks are marked at specific points such as Sella (the center of the pituitary fossa), Nasion (the junction of the nose and forehead bones), Point A and Point B (the deepest curves of the upper and lower jaw in front of the tooth roots), Pogonion (the most forward point of the chin), and the tips and root apices of the front teeth. Lines drawn between those points become the reference planes for measurement.

The measurements fall into four groups:

• Front to back (sagittal): whether the upper and lower jaws are in balance or one sits too far forward or back.
• Vertical: whether the face is proportionally long, short, or average, which affects bite depth and treatment mechanics.
• Dental: how the front teeth are angled and positioned within the bone.
• Soft tissue: how the lips, nose, and chin relate to each other in profile.

Why the Ceph Still Matters When 3D Imaging Exists

A fair question in 2026 is why we still take a two dimensional X ray when cone beam CT (CBCT) can produce a full 3D scan. The answer comes down to dose, evidence, and purpose.

The dose is very small. Radiation protection guidance places the effective dose of a lateral ceph below about 6 microsieverts, and dosimetry from the University of North Carolina on modern digital units measures roughly 2 microsieverts. For comparison, natural background radiation delivers around 8 to 10 microsieverts per day. A ceph is roughly equivalent to a few hours of ordinary life.

CBCT is a targeted tool, not a routine one. A position statement from the American Academy of Oral and Maxillofacial Radiology found no clear evidence supporting routine CBCT in orthodontics, while recognizing that it is likely indicated when tooth position or structure is unusual. Reviews of the guidelines list impacted teeth, severe craniofacial anomalies, surgical planning, and jaw joint problems with signs and symptoms as the most common justified uses. The American Dental Association describes CBCT as an adjunct to conventional radiography, ordered only when it is expected to change care.

In our practice, one clear CBCT indication is evaluating teens and adults for MARPE, where the scan shows how mature the palatal suture is. For the everyday question of how the jaws and teeth relate, the ceph remains the workhorse.

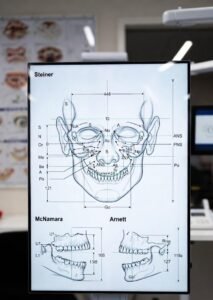

The Analyses I Rely On, and What Each One Answers

There is no single "correct" cephalometric analysis. Each was designed to answer a particular question, and each has blind spots. Reading several together makes it much less likely that one unusual landmark will mislead the diagnosis.

A few points worth knowing about these methods:

• Why the Wits appraisal exists. The ANB angle depends on where Nasion sits. If the skull base is unusually long or rotated, ANB can suggest a jaw imbalance that is not really there, or hide one that is. Jacobson's Wits appraisal measures the same relationship along the bite plane instead, which is why I read the two together.
• Why McNamara uses millimeters. Angles can look normal when both jaws are small or both are large. Linear measurements of jaw length help show which jaw is actually responsible for a bite problem.
• Why soft tissue analysis matters. Arnett and colleagues developed their analysis because planning by bone measurements alone can produce a good bite with an unbalanced face. Their method measures the profile in natural head position, the way people actually see you.

Reference Values at a Glance

The table below lists commonly used reference values. These are averages from specific study groups, and a measurement outside the range is a reason to look more closely, not a diagnosis by itself.

Why "Normal" Depends on Who You Are

Most classic norms were built from samples of people of European ancestry. That matters, because facial proportions vary meaningfully between populations.

A compilation of Chinese cephalometric studies found a shorter skull base, a larger ANB, more forward positioned teeth with a smaller interincisal angle, a less obtuse nasolabial angle, and fuller lips compared with Caucasian norms. A matched comparison in the European Journal of Orthodontics found smaller midfaces, shorter lower jaws, more protrusive lips, and a more convex profile in Chinese young adults with normal bites and well balanced faces. Studies of Indian populations report higher SNA values than Steiner's norms, and research in Malaysian Chinese and Indian adults found the lower lip sitting at or ahead of the E line rather than 2 mm behind it.

Arnett's own soft tissue norms came from facially balanced Caucasian models, and a study of Turkish adults found clear differences from those values.

In a community as diverse as the Tri City area, this is not academic. Applying one set of norms to everyone can lead to plans that retract teeth or remove them to reach a number, flattening a profile that was already attractive and typical for that person. I look at the face first and use population appropriate references to interpret the numbers, not the other way around.

What a Ceph Can and Cannot Do

Good diagnosis means being honest about a tool's limits, and the research here is more nuanced than many people expect.

It changes plans less often than assumed. In a 2011 study, more than a hundred orthodontists planned the same six cases with and without a ceph, and for most decisions, having it made no significant difference. A 2015 study in The Angle Orthodontist and a 2018 study of 75 Class II patients in Zurich reached similar conclusions. Where the ceph did influence decisions, it was most often in Class II cases and when deciding whether to extract teeth on a skeletal imbalance.

Landmark placement is the main source of error. Baumrind and Frantz's classic work found that some landmarks, including gonion and the lower incisor root tip, are much harder to place consistently than others. A small shift in one point can move an angle by a degree or two.

Growth prediction for an individual is still imprecise. Systematic reviews of methods for predicting lower jaw growth rate their overall quality as low to moderate. The ceph tells us where a child is now and how mature their skeleton is, but it cannot promise exactly how much a jaw will grow.

So where does the ceph earn its place? In the decisions that hinge on the jaws rather than the teeth:

• Separating dental from skeletal problems. Two Class II bites can look identical in the mirror while one comes from tooth position and the other from a short lower jaw. They need different treatment.
• Choosing between growth guidance, camouflage, and surgery. For adults especially, the measurements help show whether moving teeth alone can produce a stable, attractive result or whether a surgical consultation is the honest recommendation.
• Setting safe limits for tooth movement. Before Invisalign or braces tip the front teeth forward to make room, the ceph shows how far they are already angled.
• Timing and documenting treatment, covered in the next two sections.

I treat the numbers as one input alongside the clinical exam, photographs, and a 3D scan of the teeth. Treat the patient, not the number, but never ignore the numbers.

Timing Treatment With the Cervical Vertebrae

The same ceph shows the neck vertebrae, and their shape changes predictably as a child matures. Baccetti, Franchi, and McNamara's 2005 cervical vertebral maturation method describes six stages, with the peak in lower jaw growth occurring between the third and fourth stage. Because this comes from the existing ceph, it requires no additional X ray.

This matters for treatments that work with growth, such as a palatal expander or appliances that encourage the lower jaw forward. Started too early, treatment runs longer than it needs to. Started too late, the growth we hoped to use has already happened. The method has limits too, since later research showed that not every stage is equally reproducible between examiners, so I combine it with age, dental development, and the clinical picture.

This is also why the American Association of Orthodontists recommends an early orthodontic evaluation by about age 7. Most children seen at that age need no treatment yet, but a baseline lets us watch growth and act at the right moment. Parents can read more in our guide to children and braces.

Superimposition: Measuring What Treatment Actually Did

A single ceph describes a moment. Two cephs, superimposed on stable anatomical structures, show what changed and why: how much came from growth, how much from tooth movement, and whether the jaws responded as planned.

The American Board of Orthodontics requires three superimpositions in its certification case reports, registered on the cranial base, the upper jaw, and the lower jaw, along with complete tracings at each stage. ABO examiners have written that misunderstanding tracing and superimposition technique is one of the common errors they see, because it leads to misreading what treatment accomplished. Completing that process is part of what board certification involves, and it is a habit that carries into everyday case review.

AI Tracing: Faster, Not Finished

Automated landmark detection has improved quickly. A 2024 systematic review in the European Journal of Orthodontics, which pooled results across studies, found that AI placement of landmarks on standard cephs averaged about 1.4 mm of error, under the 2 mm threshold generally treated as clinically acceptable. Accuracy on 3D scans varied far more, from 1.0 to 5.8 mm across studies. A 2023 study in BMC Oral Health found that AI assisted tracing placed more than 85 percent of landmarks within 2 mm while saving considerable time.

Averages hide the cases that matter. The hardest landmarks for humans, such as Point B, gonion, and the incisor root tips, are also where software errs most, and a 2 mm shift at Point B is enough to change ANB and potentially the diagnosis. The sensible workflow is that software proposes and the orthodontist verifies every landmark that drives a decision.

The Airway Question

A ceph shows the outline of the throat behind the soft palate and tongue, and McNamara included pharyngeal measurements in his analysis. It is tempting to read airway health straight from the image. The evidence says to be careful.

The American Association of Orthodontists' 2019 white paper, and its 2026 update published in the American Journal of Orthodontics and Dentofacial Orthopedics, make the same core point: orthodontists play an important role in screening for sleep disordered breathing, but diagnosis belongs to sleep physicians. The update states that airway dimensions on imaging do not necessarily reflect how the airway functions during sleep, and that no specific facial or jaw pattern reliably identifies who has the condition.

In practice, this shapes our airway focused orthodontic care. If a child snores, breathes through the mouth, sleeps restlessly, or struggles with daytime focus, and the exam or ceph raises concern, the right step is a referral for a sleep evaluation. When there is also a genuine orthodontic reason for treatment, such as a narrow upper jaw or crossbite, we coordinate that treatment with the child's physicians rather than promising it will fix breathing on its own.

What This Means for You at Your First Visit

If you are considering treatment for yourself or your child, here is how cephalometric analysis fits into what happens at your first visit, along with a few questions worth asking any orthodontist.

What we take. The free consultation includes a panoramic X ray, a lateral ceph, a 3D scan of the teeth, and photographs. You can read the full walkthrough of what happens at your first visit.

For adults, the ceph often decides whether braces or aligners alone can achieve a stable result, or whether a jaw discrepancy calls for a different approach. Our page on orthodontic treatment for adults covers the options in more detail.
